| Printhead: | Two on-demand piezo heads, staggered layout |
| Print resolution | 360 dpi, 720 dpi, 900 dpi, 1200 dpi |
| Print speed (4 color mode) | up to 1399.308 SqFt/Hr (130 m2/h) |
| Maximum Print Area: | 63.4″ (1610.0 mm) |
| Maximum media width: | 63.8″ (1620 mm) |
| Maximum media thickness | up to 1 mm |
| Maximum Media weight: | up to 45 kg |
| Ink Type/Color: | U.S. & Canada- LUS-170 Mexico, Central & South America- LUS-210: C, M, Y, K, W, CI (Clear ink: availability TBC) LUS-190 / C,M,Y,K,W,CL (Clear) |
| Interface: | Ethernet 1000 BASE-T, USB2.0 Hi-Speed |
| Power supply: | AC100~120V/200~240V±10% 50/60Hz±1Hz |
| Power consumption: | AC200V: Main unit – 7 kVA or less | Fixation heater – 50 kVA or less |
| Operational environment: | Temperature 20° – 30°C Humidity: 35 – 65 % RH (Non condensing) |
| Dimensions (W × D × H): | 109.3 x 27.6 x 58.1″ (2775 x 700 x 1475 mm) |
| Weight: | 368.2 lb (167 kg) |

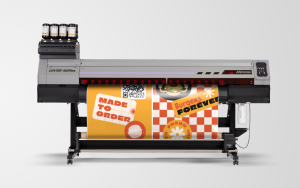

The UJV100-160Plus is a competitively priced UV-LED roll-based printer with many productivity features found in higher-end models. It features Mimaki instant-dry UV-LED inks that adhere to a variety of media including paper, PET film, fabric, vinyl, and more -making post-printing handling and finishing effortless. With UV-LED lamps, the inks cure instantly, dramatically increasing printing speed and efficiency. This multi-purpose machine is suited for a variety of applications while keeping costs low.
| UV Curable Ink (LUS170) 1L Bottle | CYAN: LUS17-C-BA |
|---|---|
| UV Curable Ink (LUS210) 1L Bottle | CYAN: LUS21-C-BA |
