| Printhead: | 8 on-demand piezo heads in a staggered array |
| Print resolution | 1800 dpi |
| Print speed (4 color mode) | 86.1 ft2/hr (8 m2/hr) |
| Maximum Print Area: | 27.9″ x 20.0″ (710 × 510 mm) |
| Maximum media area: | 30” x 24” |
| Maximum media thickness | up to 6.02″ (153 mm) |
| Maximum Media Weight: | 66.0 lbs. (30.0 kg) |
| Ink Type/Color: | Rigid: LH-100, Flexible: LUS-120, LUS-350 |
| Interface: | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power supply: | Single phase AC100-240V +6%/-10% 50/60Hz ± 1Hz |
| Power consumption: | AC100V: 1.3kW or less |
| Operational environment: | Temperature 59° – 86° F (15-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 87″ x 62″ x 51″ (220.3 x 158 x 129.3 cm) |
| Weight: | 728 lbs. (330 kg) |
| Certifications: | VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, GREENGUARD Gold |

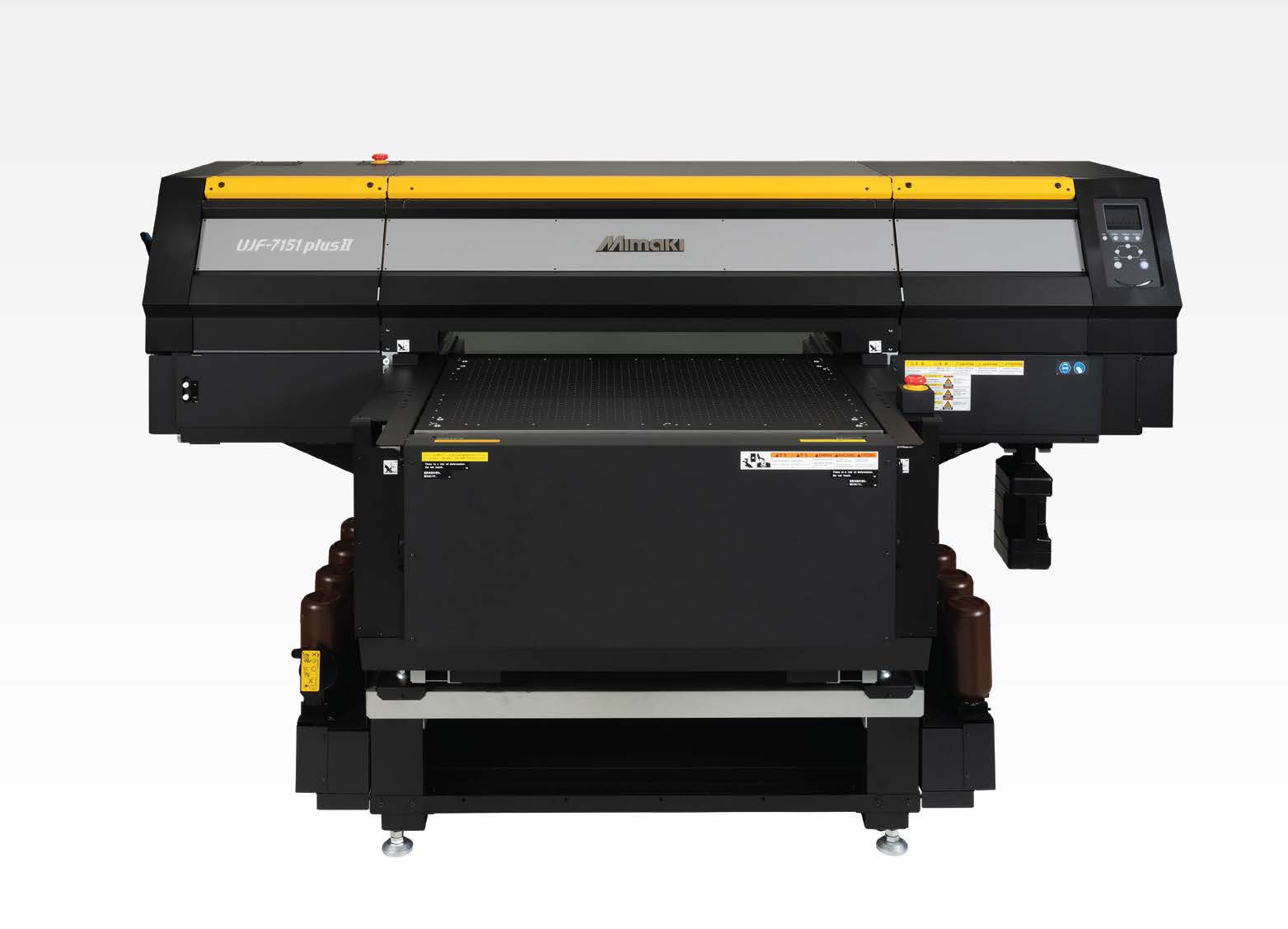

The New Mimaki UJF-7151 plus II offers new expression with the color gloss function, high-definition printing at 1800 dpi, and the ability to automate workpiece transport with “Mimaki original MDL (Mimaki Device Language) commands*1”. The UJF-7151 plus II is a high-performance UV inkjet printer model with high accuracy, high image quality, and high speed, and is a further improvement in quality and stability from the current model, the UJF-7151 plus, which offered high accuracy and high image quality in addition to class-leading productivity and stability.
| Tinta curable por UV (LH-100) | Botella 250ml Cyan: I-LH100-C-B2-1 Botella 1L Cyan: LH100-C-BA |
|---|---|
| Tinta curable por UV (LUS-120) | Botella 250ml Cyan: I-LUS12-C-B2-1 Botella 1L Cyan: LUS12-C-BA |
| Tinta curable por UV (LUS-350) | Botella 1L Cyan: LUS35-C-BA |
