| Printhead: | Six on-demand piezo heads in a staggered array |
| Print resolution | 1,200 dpi |
| Print speed (4 color mode) | up to 5.2 min / bed SqFt/Hr (5.2 min / bed m2/h) |
| Maximum Print Area: | 27.9″ x 20.0″ (710 × 510 mm) |
| Maximum media width: | 28.7″ (730 mm) |
| Maximum media thickness | up to 6.02″ (153 mm) |
| Maximum Media weight: | 22.0 lbs. (10.0 kg) |
| Ink Type/Color: | U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350 |
| Interface: | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power supply: | Single-phase AC100 – 120V / AC200 – 240V |
| Power consumption: | AC100V: 1.3kW or less |
| Operational environment: | Temperature 59° – 86° F (15-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 86.34″ x 61.89″ x 50.12″ (219.3 x 157.2 x 127.3 cm) |
| Weight: | 698.87 lbs. (317 kg) |

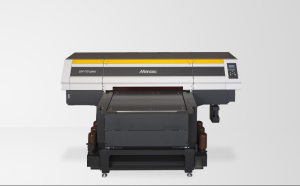

This state-of-the-art model is geared for on-demand printing. Both its compact size and full line of features are ideal for creating specialty graphics or signage; or for customization, manufacturing and just-in-time production.
| UV curable ink (LH-100) 250ml Bottle | CYAN: I-LH100-C-B2-1 |
|---|---|
| UV curable ink (LH-100) 1L Bottle | CYAN: LH100-C-BA |
| UV curable ink (LUS-120) 250ml Bottle | CYAN: I-LUS12-C-B2-1 |
| UV curable ink (LUS-120) 1L Bottle | CYAN: LUS12-C-BA |
| UV curable ink (LUS-350) 1L Bottle | CYAN: LUS35-C-BA |
| UV Primer (PR-200) 250ml Bottle | PRIMER: PR200-Z-BA |
| UV Primer (PR-200) 1L Bottle | PRIMER: PR200-Z-BA |
