| Printhead: | Four on-demand piezo heads in a staggered array |
| Print resolution | Maximum: 1200 x 1200 dpi |
| Print speed (4 color mode) | up to 7.1 min / bed SqFt/Hr (7.1 min / bed m2/h) |
| Maximum Print Area: | 23.6″ x 16.5″ (600 x 420 mm) |
| Maximum media width: | 24″ (610 mm) |
| Maximum media thickness | up to 6.02″ (153 mm) |
| Maximum Media weight: | 17.1″ (8.0 kg) |
| Ink Type/Color: | U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150 |
| Interface: | Ethernet 1000BASE-T USB2.0 Hi-speed |
| Power supply: | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Power consumption: | AC100V: 1,000W or less |
| Operational environment: | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 65.6″ x 50.8″ x 33.7″ (166.6 x 129 x 85.6 cm) |
| Weight: | 330.7 lbs. (150 kg) |

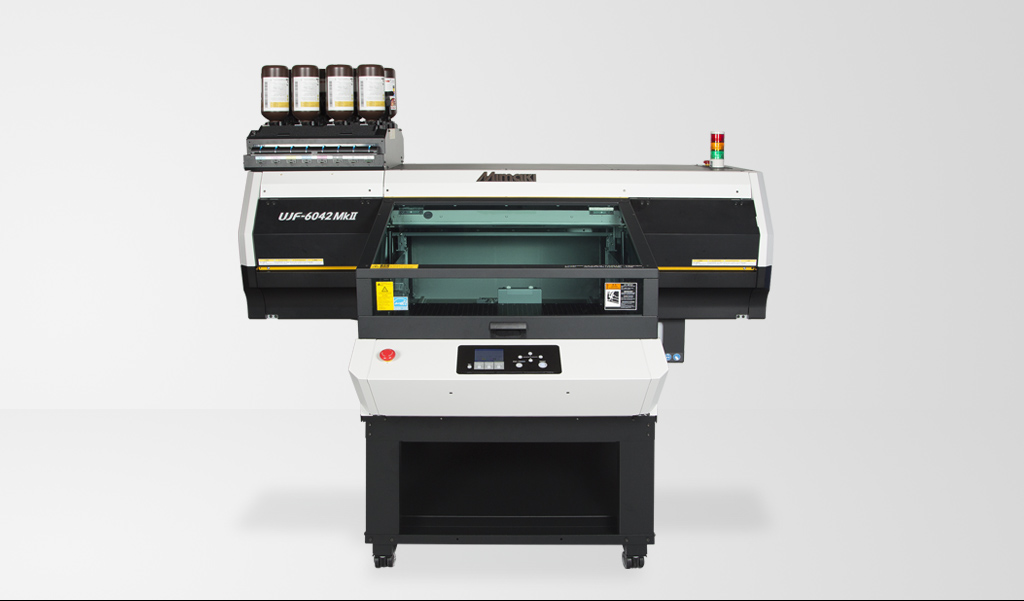

The UJF-6042MkII succeeds the UJF-6042 and delivers improved image quality, stability, and control. This tabletop UV printer has been engineered to accommodate all direct-to-object printing applications, thanks to a print technology allowing the print head to propel UV ink droplets directly onto 3D items secured by specialized tooling. Your business can therefore expand its personalization options by printing images, graphics, and logos onto various types of products.
| UV curable ink (LH-100) 250ml Bottle | CYAN: I-LH100-C-B2-1 |
|---|---|
| UV curable ink (LH-100) 1L Bottle | CYAN: LH100-C-BA |
| UV curable ink (LUS-120) 250ml Bottle | CYAN: I-LUS12-C-B2-1 |
| UV curable ink (LUS-120) 1L Bottle | CYAN: LUS12-C-BA |
| UV curable ink (LUS-150) 1L Bottle | CYAN: LUS15-C-BA |
| UV Primer (PR-200) 250ml Bottle | PRIMER: PR200-Z-BA |
| UV Primer (PR-200) 1L Bottle | PRIMER: PR200-Z-BA |
