| Printhead: | Two in-line on-demand piezo heads |
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi |
| Print speed (4 color mode) | up to 195.9 SqFt/Hr (25.8 m2/h) |
| Maximum Print Area: | 63.4″ (1610 mm) |
| Maximum media width: | 63.8″ (1620 mm) |
| Maximum media thickness | up to 0.04″ (1 mm) |
| Maximum Media Weight: | 88.2 lbs. (40.0 kg) |
| Ink Type/Color: | U.S. & Canada- LUS-170, LUS-200 | Mexico, Central & South America- LUS-175, LUS-200 |
| Interface: | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power supply: | Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2 |
| Power consumption: | AC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2 |
| Operational environment: | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 114.2 x 30.6 x 58.1″ (2,900 x 776 x 1,475 mm) |
| Weight: | 414.5 lbs. (188 kg) |
| Certifications: | VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM |

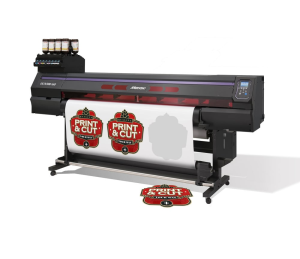

Mimaki is proud to continue paving the way in UV-LED printing. Our revolutionary technologies have enabled us to improve print quality, speed, and versatility. The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images.
| UV Curable Ink (LUS170) 1L Bottle | CYAN: LUS17-C-BA |
|---|---|
| UV Curable Ink (LUS175) 1L Bottle | CYAN: LUS175-C-BA |
| UV Curable Ink (LUS200) 1L Bottle | CYAN: LUS20-C-BA |
