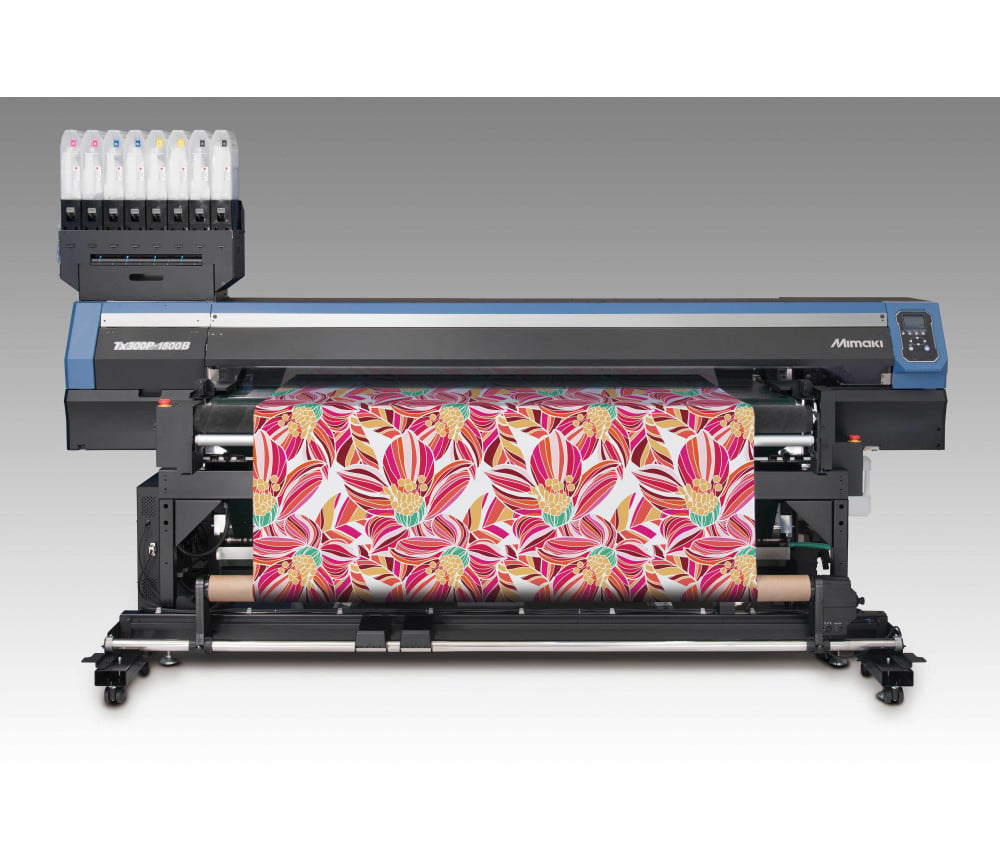

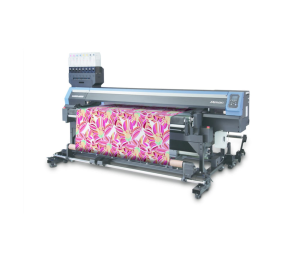

TX300P-1800B

Printhead: Four in-line on-demand piezo heads
Print resolution 360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi
Print speed (4 color mode) Tx300P-1800B: up to 581.251 SqFt/Hr (54 SqM/Hr)
Maximum Print Area: Tx300P-1800B: 74″ (1880 mm)
Maximum media width: Tx300P-1800B: 74.8″ (1900 mm)
Maximum media thickness up to 0.04″ (1 mm)
Maximum Media weight: 88.2 lbs. (40.0 kg)
Ink Type/Color:  U.S. & Canada- Sb420, Ac400, Rc400, Rc500, TP400, DD400 | Mexico, Central & South America- Sb420, Ac400, Rc400, Rc500, TP400, DD400
Interface: Ethernet 1000BASE-T, USB2.0 Hi-speed
Power supply: Single-phase AC100-120V/AC200-240V +/- 10% 50/60Hz +/-1Hz
Power consumption: AC100V: 1.44kW or less x2 | AC200V: 1.92kW or less x2
Operational environment: Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H): 125.3″ x 75.2″ x 72.5″ (318.3 x 191 x 184.2 cm)
Weight: Tx300P-1800B: 1382.3 lbs. (627 kg)
Certifications: “VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, and RCM”



Printer Specifications

Description

This machine includes many features found on top-of-the-line direct-print models, but with a lower cost-of-ownership that is suitable for you. Expertly combining quality and high speed, you can produce flags, banners, fashion textiles, sportswear, décor and more.

Additional information

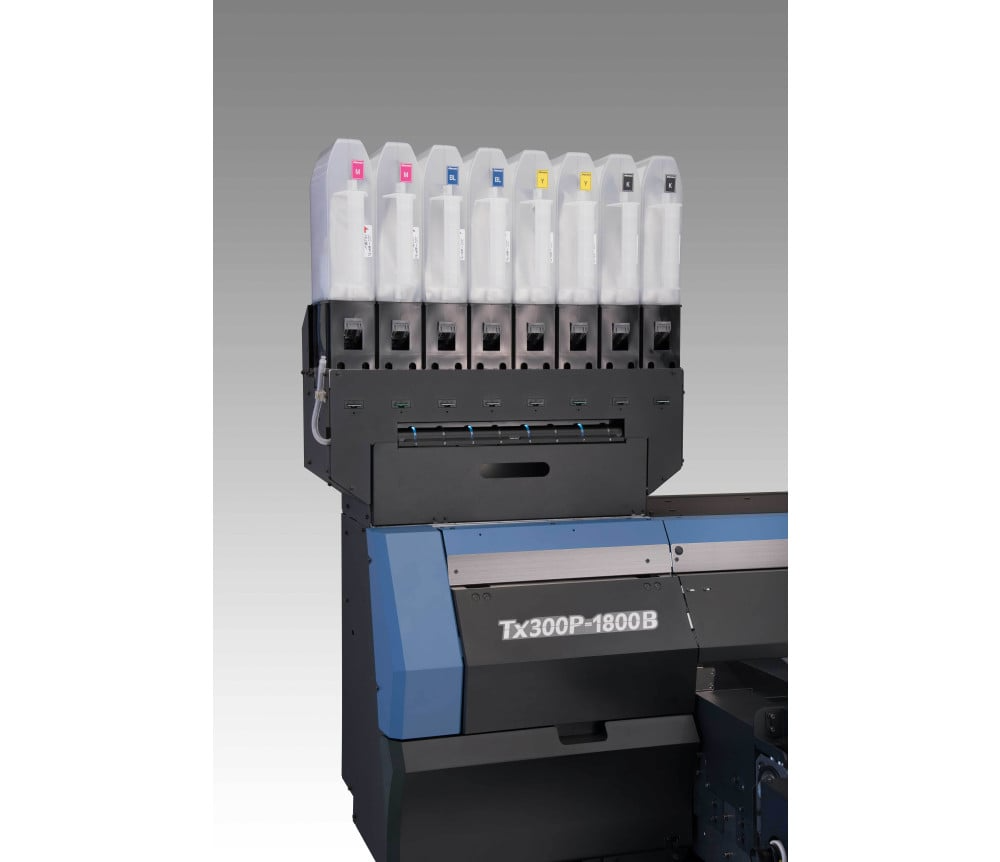

Dye Sublimation Ink (SB420) 2L Ink Pack

BLUE: SB420-BLD-2L
MAGENTA: SB420-MD-2L
YELLOW: SB420-YD-2L
BLACK: SB420-KD-2L
LIGHT BLUE: SB420-LBD-2L
LIGHT MAGENTA: SB420-LMD-2L

Acid Pigment Ink (AC400) 2L Ink Pack

CYAN: AC400-C-2L
MAGENTA: AC400-M-2L
YELLOW: AC400-Y-2L
BLACK: AC400-K-2L
LIGHT BLACK: AC400-LK-2L
BLUE: AC400-BL-2L
ORANGE: AC400-OR-2L
RED: AC400-R-2L

Reactive Dye Ink (RC400) 2L Ink Pack

CYAN: RC400-C-2L
MAGENTA: RC400-M-2L
YELLOW: RC400-Y-2L
BLACK: RC400-K-2L
BLUE: RC400-BL-2L
RED: RC400-R-2L
LIGHT BLACK: RC400-LK-2L
ORANGE: RC400-OR-2L

Reactive Dye Ink (RC500) 2L Ink Pack

CYAN: RC500-C-2L
MAGENTA: RC500-M-2L
YELLOW: RC500-Y-2L
BLACK: RC500-K-2L
BLUE: RC500-BL-2L
RED: RC500-R-2L
LIGHT BLACK: RC500-LK-2L
ORANGE: RC500-OR-2L

Textile Pigment Ink (TP400) 2L Ink Pack

CYAN: TP400-C-2L
MAGENTA: TP400-M-2L
YELLOW: TP400-Y-2L
BLACK: TP400-K-2L
LIGHT BLACK: TP400-LK-2L
BLUE: TP400-BL-2L
RED: TP400-R-2L

Disperse Dye Ink (DD400) 2L Ink Pack

CYAN: DD400-C-2L
MAGENTA: DD400-M-2L
YELLOW: DD400-Y-2L
BLACK: DD400-K-2L
RED: DD400-R-2L
VIOLET: DD400-V-2L
PINK: DD400-P-2L
GRAY: DD400-G-2L
