| Printhead: | Four in-line on-demand piezo heads |
| Print resolution | 360 dpi, 480 dpi, 600 dpi, 540 dpi, 720 dpi, 1080 dpi, 1200 dpi |
| Print speed (4 color mode) | up to 1453.13 SqFt/Hr (135 m2/h) |
| Maximum Print Area: | 76.4″ (1940 mm) |
| Maximum media width: | 76.8″ (1950 mm) |
| Maximum media thickness | up to 0.04″ (1 mm) |
| Maximum Media weight: | 99.2, 220.5, 661.4 lbs. (45, 100, 300 kg) |
| Ink Type/Color: | U.S. & Canada – Sb610 | Mexico, Central & South America- Sb610 |
| Interface: | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power supply: | Single phase AC 100-120 V/AC 200-240 V x1 Mini Jumbo Unit: Single phase AC 200-240 V x1 Extended Heater: Single phase AC100-120 V/AC AC 200-240 V ± 10% |
| Power consumption: | (AC 100 V) 1.44kW (AC 200 V) 1.92kW or less Mini Jumbo Unit: (AC 200 V) 1.0 kW or less Extended Heater: (AC 100 V) 1.0kW or less / (AC 200 V) 1.0kW or less |
| Operational environment: | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 127.5″ x 28″ x 73.1″ (323.9 x 71.1 x 185.7 cm) |
| Weight: | Main unit: 445.3 lbs. (202 kg) Mini Jumbo Unit: 421.1 lbs. (191 kg) 10kg Ink supply unit: 77.2 lbs. (35 kg) Extended heater: 33.1 lbs. (15 kg) |

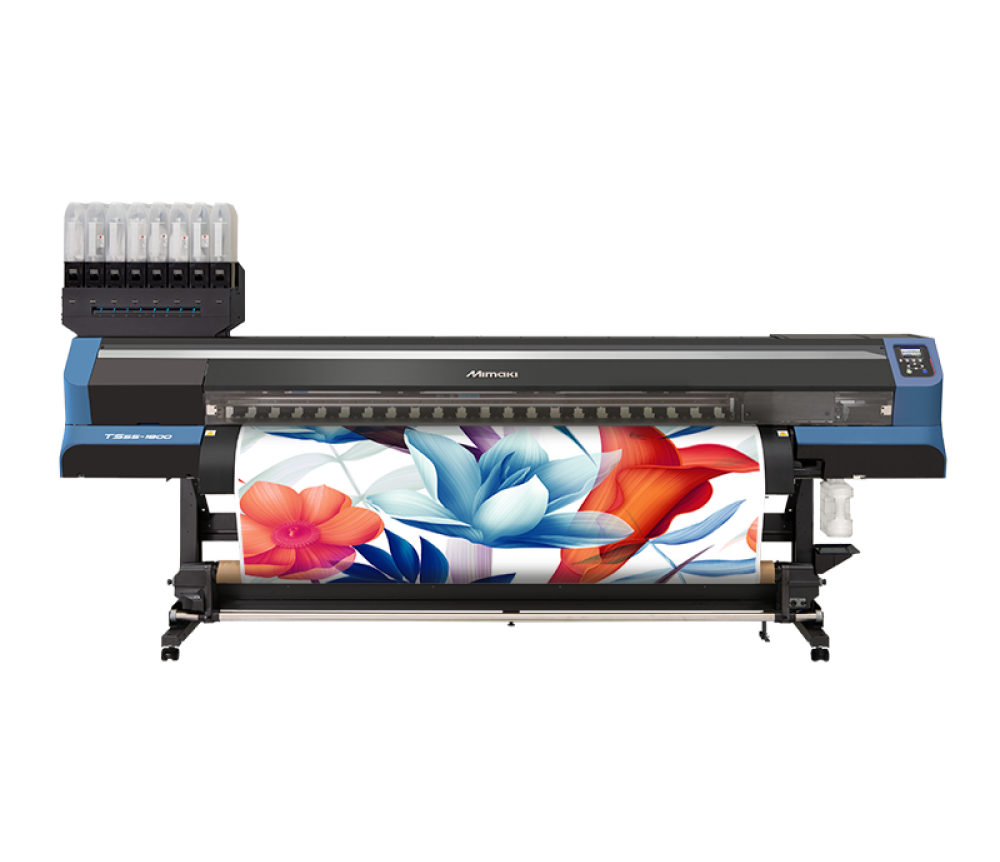

The TS55-1800 dye-sublimation transfer printing system is the future of digital textile manufacturing and was created to empower designers. Effortlessly scale your operation with its high-end features that offer unattended continuous apparel/textile printing, industry-leading productivity, and low running costs to meet marketplace demands. This versatile transfer inkjet printer can provide a quick return on investment with unparalleled speeds for a high-volume textile printer, while low maintenance means less downtime.
| Dye Sublimation Ink (SB610) 2L Ink Pack | BLUE: SB610-BLT-2L |
|---|---|
| Dye Sublimation Ink (SB610) 10 Kg (22 lbs.) Tank | BLUE: SB610-BLT-BJ |
