| Printhead: | Twelve on-demand piezo heads in a staggered array |
| Print resolution | X: 360 dpi, 540 dpi, 720 dpi, 1080 dpi Y: 360 dpi, 540 dpi, 720 dpi |
| Print speed (4 color mode) | up to 1937.504 SqFt/Hr (180 m2/) |
| Maximum Print Area: | 129.5″ (3290 mm) |
| Maximum media width: | 129.9″ (3300 mm) |
| Maximum media thickness | up to 0.04″ (1 mm) |
| Maximum Media weight: | 286.9 lbs. (130.0 kg) |
| Ink Type/Color: | U.S. & Canada- Sb310 | Mexico, Central & South America- Sb310 |
| Interface: | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power supply: | Single-phase AC200 – 240V ±10%, 50/60Hz ±1Hz |
| Power consumption: | AC200V: 6,900W or less |
| Operational environment: | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 221.3″ x 70.9″ x 71.7″ (562.1 x 180.1 x 182.1 cm) |
| Weight: | Main unit: 3,306.9 lbs. (1,500 kg) Ink supply unit: 66.1 lbs. (30 kg) |
| Certifications: | VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH |

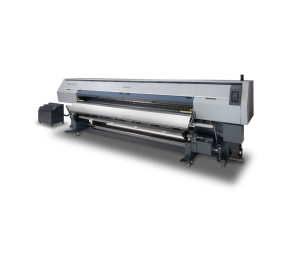

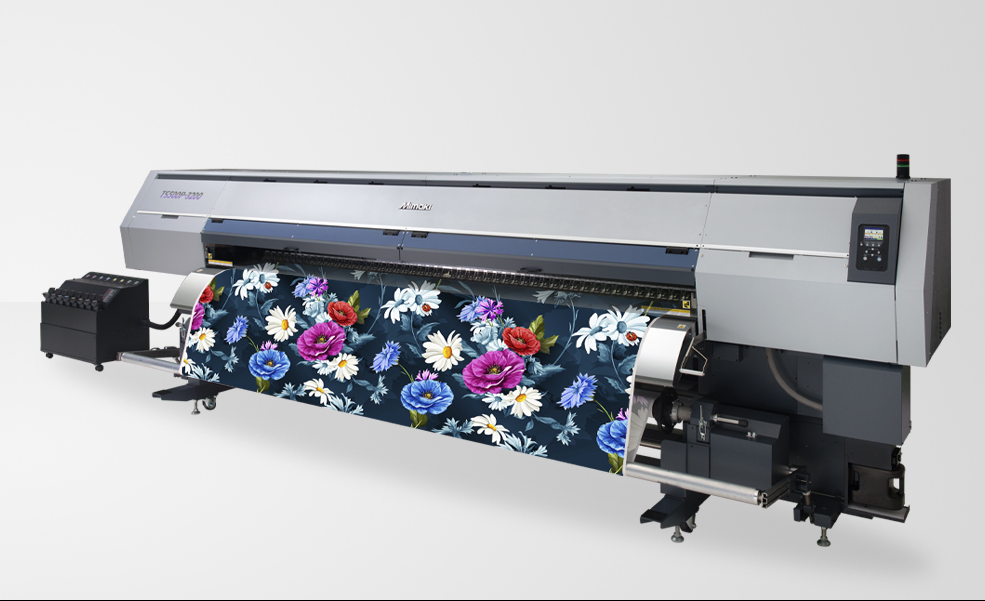

The TS500P-3200 offers a wide range of new productivity features for graphics businesses, providing new possibilities for fabric printing and producing customized products.
This grand format digital printer is designed to accommodate extra-wide textile applications, such as soft signage, home furnishing, and hospitality fabrics (grand format digital inkjet printers are those that print anything over 95 inches in width). The 129.9-inch (3.2 m) wide configuration makes this an extremely versatile printer, with a range of innovative technical features that ensure both exceptional performance and reliability, including vibrant water-based inks, variable dot printing, and more.
The TS500P-3200 has been engineered to work with the thinnest transfer paper, while staggered printheads and a cockling reduction transfer mechanism enable high-speed printing at superior quality. Tension is adjusted via front and rear tension bars. This improves stability while maintaining steady contact with the print media. Along with rapid eject ink printheads, these technologies sustain quality, even at higher printhead gap settings.
| Dye-Sublimation ink (Sb310) | BLUE: SB310-BLT-BB |
|---|
