| Printhead: | One on-demand piezo head |
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi |
| Print speed (4 color mode) | up to 1453.1 SqFt/Hr (135.0 m2/h) |
| Maximum Print Area: | 63.4″ (1,610 mm) |
| Maximum media width: | 63.8″ (1620 mm) |
| Maximum media thickness | up to 0.04″ (1 mm) |
| Maximum Media Weight: | Roll weight: 45 kg or less (99.2 lbs) |
| Ink Type/Color: | Sublimation ink Sb411 (Bl, M, Y, K, Lbl, Lm, Lk), Sb410 (Fp, Fy) |
| Interface: | Ethernet 1000 BASE-T / (USB2.0 Hi-speed) |
| Power supply: | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz |
| Power consumption: | Max.: 1,440 W or less / Standard: 800 W |
| Operational environment: | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
| Dimensions (W × D × H): | 3,170 x 820 x 1,305 mm (124.8 x 32.3 x 51.4″) |
| Weight: | 529.1 lbs (240 kg) |
| Certifications: | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA |

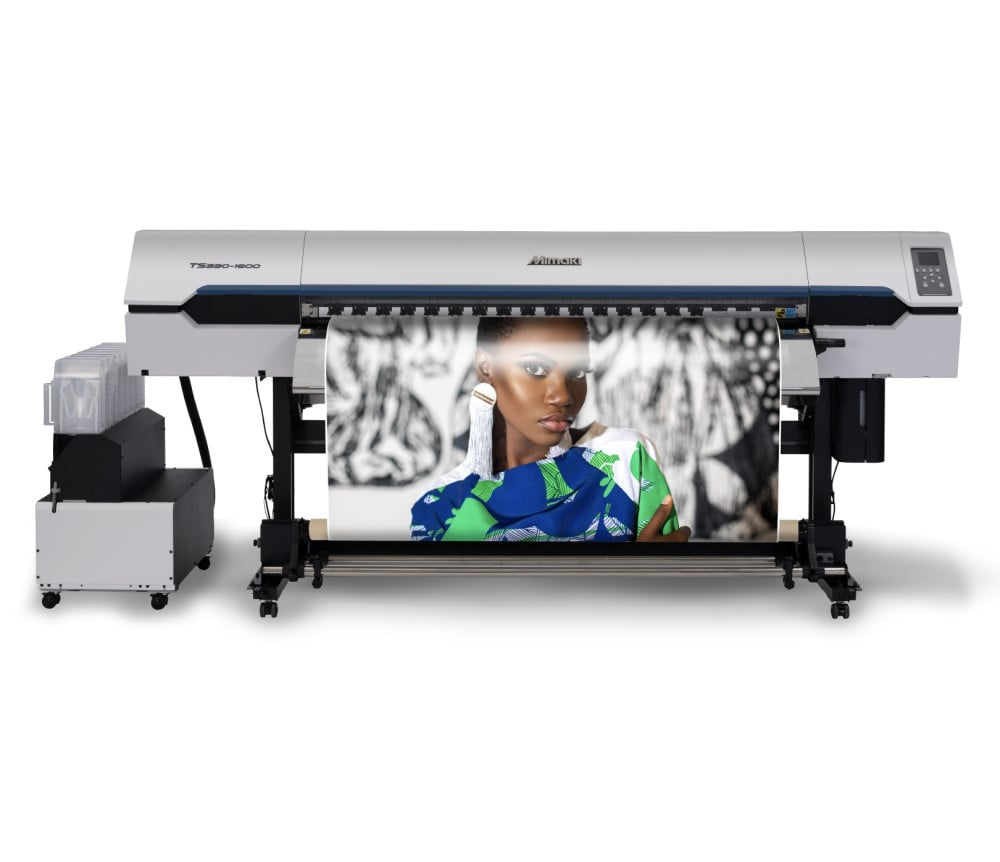

The TS330 Series fabric and textile printer uses Sb411/Sb410 (Fluo) dye sublimation inks. It is a high grade industrial sublimation printing solution with an expanded fluorescent color range (including fluorescent pink and yellow). Additionally, it allows for unmatched productivity regardless of printing volume, with an impressive printing speed of 1,453 sq ft. per hour.
This sublimation transfer inkjet printer provides superior image quality and employs Mimaki Weaving Dot Technology (MWDT). MWDT adapts to various printing conditions by changing ink drop placement order, allowing more consistent quality and leading to reduced downtime. To help reduce operating costs, an optional 10kg bulk ink system.
This advanced dye sublimation printing system supports production sizes up to 64″ and has 4, 6, 7, and 8 color configurations. RasterLink7 software (included) TxLink4 textile RIP (available) allow for unmatched productivity.
Other advanced features include dual motor take up for increased stability to prevent media walking
| Dye Sublimation Ink (SB411, SB410) 2L MBIS Pack* | BLUE: S411-BLT-2L |
|---|---|
| Dye Sublimation Ink (SB411, SB410) 10 Kg Tanks | BLUE: I-SB411-BLT-BJ-1-SW |
