TS200-1600

SPECIFICATIONS

Printhead:	Single, on-demand, piezo print head
Print resolution	Y:300,600,900 dpi \| X:600 dpi
Print speed (4 color mode)	753.5 sqft/hr (70 sqm/hr)
Maximum Print width:	63.3 inch (1610 mm)
Maximum media width:	63.7 inch (1620 mm)
Maximum Thickness	0.039 inches (1.0 mm)
Roll Weight:	(a) 55.1 lb. (25.0 kg) (b) 99.2 lb. (45.0 kg) – with installation of a foot leveling kit (Opt-J0502)
Ink Package Size:	2L ink pack
Interface:	Ethernet 1000BASE-T (Recommended), USB2.0 Hi-Speed
Power supply:	AC100~120V/200~240V±10% 3A 50/60Hz±1Hz
Power consumption:	Max. 250W or less
Operational environment:	Temperature: 68˚ to 86˚ F (20˚ to 30˚ C) Humidity: 35% to 65%
Dimensions (W × D × H):	109 in x 29.4 in x 63.8 in (2770 mm x 748 mm x 1623 mm)
Weight (uncrated):	341.7 lbs. (155.0 kg)
Certifications:	VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC, UKCA

DESCRIPTION

Description

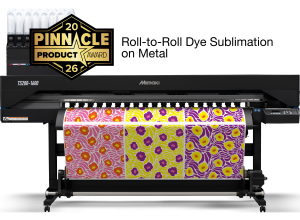

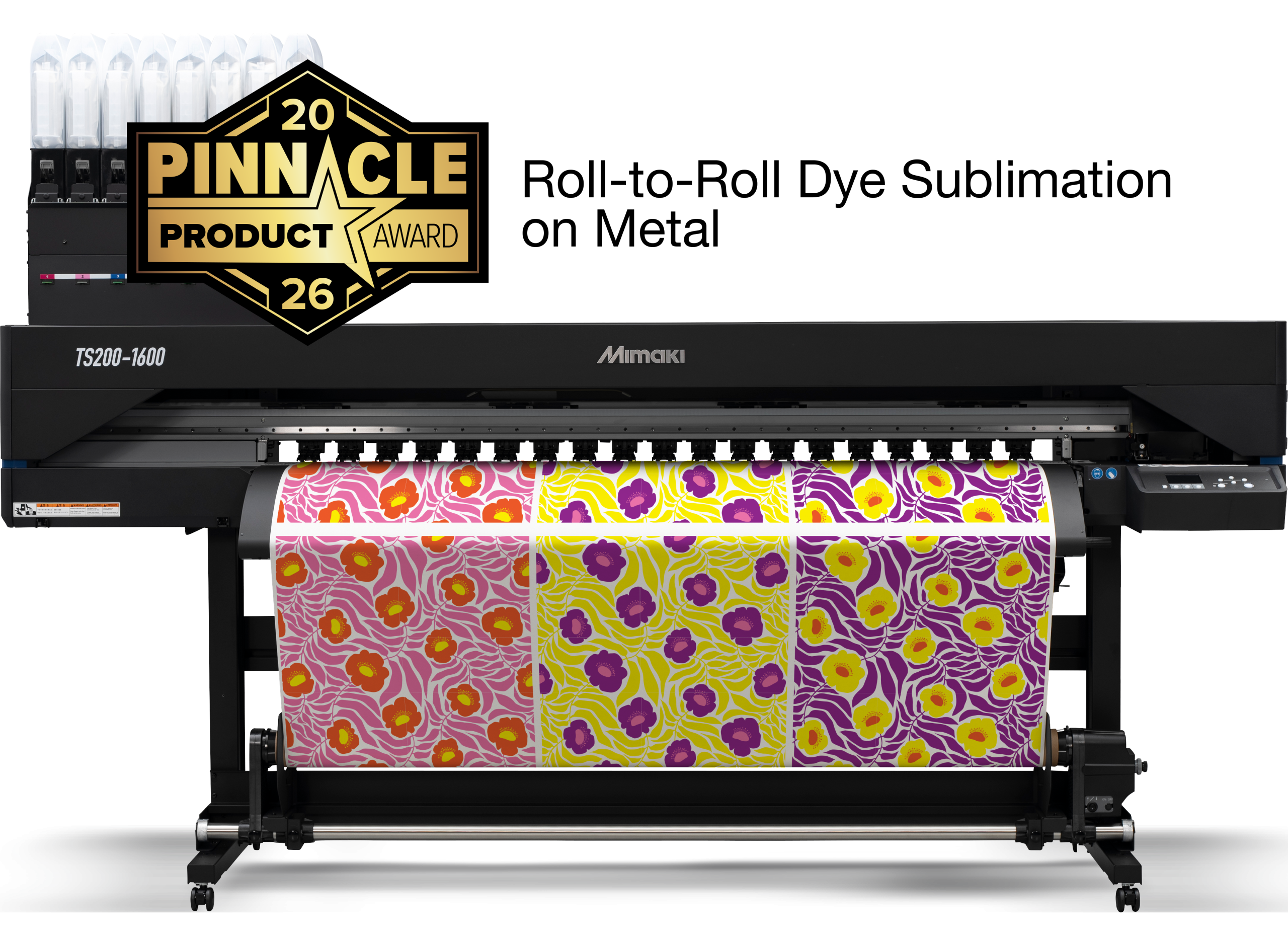

The Mimaki TS200-1600 is a 64-inch sublimation transfer printer designed for high-volume textile production, offering:

High quality and speed: Up to 753.5 sq. ft./hr. with excellent detail and color saturation.
Enhanced color range: Available in 4- or 8-color configurations, with up to a 22% wider color gamut in 8-color mode.
Ink savings: In-RIP technology can reduce ink consumption by up to 50%.
Easy operation: Remote access, cloud-based monitoring, and automatic media adjustments.
Low-maintenance design: Automatic nozzle replacement and sensor-based adjustments simplify production.

In short: The TS200-1600 is a high-performance solution for fast, vibrant, and cost-efficient textile production.

Dye Sublimation Ink (Sb411)	Blue, SB411-BLT-2L Magenta, SB411-MT-2L Yellow, SB411-YT-2L Black, SB411-KT-2L Violet, SB411-VT-2L Orange, SB411-ORT-2L Fluorescent Pink, SB411-FPT-2L Fluorescent Yellow, SB411-FYT-2L
