| Printhead: | Two staggered, on-demand piezo heads |
| Print resolution | 360 dpi, 600 dpi, 720 dpi, 900 dpi |
| Print speed (4 color mode) | 753 SqFt/Hr |
| Maximum Print Area: | 63.3″ (1610.0 mm) |
| Maximum media width: | 63.8″ (1620 mm) |
| Maximum media thickness | up to 0.04″ (1 mm) |
| Maximum Media Weight: | Up to 99.2 pounds (45 kg) |
| Ink Type/Color: | U.S. & Canada – Sb610 | Mexico, Central & South America- Sb610 |
| Interface: | 1000 Base-T Ethernet cable or USB2.0 cable |
| Power supply: | AC100~120V/ 200~240V±10%, 50/60Hz±1Hz |
| Power consumption: | INLET 1/2: 1,440W or less (AC100V environment) 1,920W or less (AC200V environment) |
| Operational environment: | Temperature 20° – 30°C Humidity: 35 – 65 % RH (Non condensing) |
| Dimensions (W × D × H): | 109.3 x 27.6 x 58.1″ (2,775 x 700 x 1,475 mm) |
| Weight: | 366lb (166kg) |
| Certifications: | VCCI class A, FCC class A, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC |

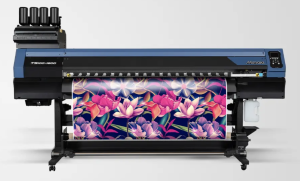

The TS100-1600 is an entry-level, high-performance sublimation printer that meets a diverse range of on-demand production. The ability to produce highly detailed, photographic quality prints with a wide array of colors, gradient capabilities and tonal quality is possible with print speeds up to 753 ft2/hour. It offers an excellent balance of operation performance, image quality, speed, at an affordable price. The printer features only those functions needed for dye sublimation printing, making it easy to operate.
| Dye Sublimation Ink (SB610) | Blue: I-SB610-BLT-BA-1-SW (E) |
|---|
