| Printhead: | 8 heads (2 stagger x 4 in-lined) |
| Print resolution | 300dpi, 600dpi |
| Print speed (4 color mode) | Max: 5,920 ft2/h (550 m2/h) |
| Maximum Print Area: | Tx300P-1800 MkII: 75.6″ (1920 mm) Tx300P-1800B: 74″ (1880 mm) |
| Maximum media width: | 74.8″ (1,900mm) |
| Maximum media thickness | 5.0mm or less |
| Maximum Media weight: | 661.4 lb or less (300kg) |
| Ink Type/Color: | Sublimation Transfer MLSb510 |
| Interface: | Ethernet 10GBASE-T USB2.0 (Removable Disk) |
| Power supply: | 3 phase 380-514V ± 5%, 50 / 60 Hz 25A or less |
| Power consumption: | Max. operating: 15.0kW or less Standby: 1.0kW or less |
| Operational environment: | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H): | 209″ x 110″ x 75″ (5,300 mm x 2,800 mm x 1,900 mm) |
| Weight: | 3, 572 lb. (1,620kg) |
| Certifications: | ETL compliant with IEC62368-1, CE marking (EMC Directive, Low Voltage Directive, Machinery Directive) CB certification / RoHS / REACH / RCM / KC certification / UKCA |

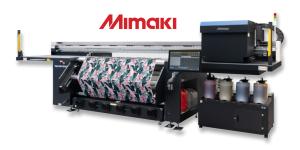

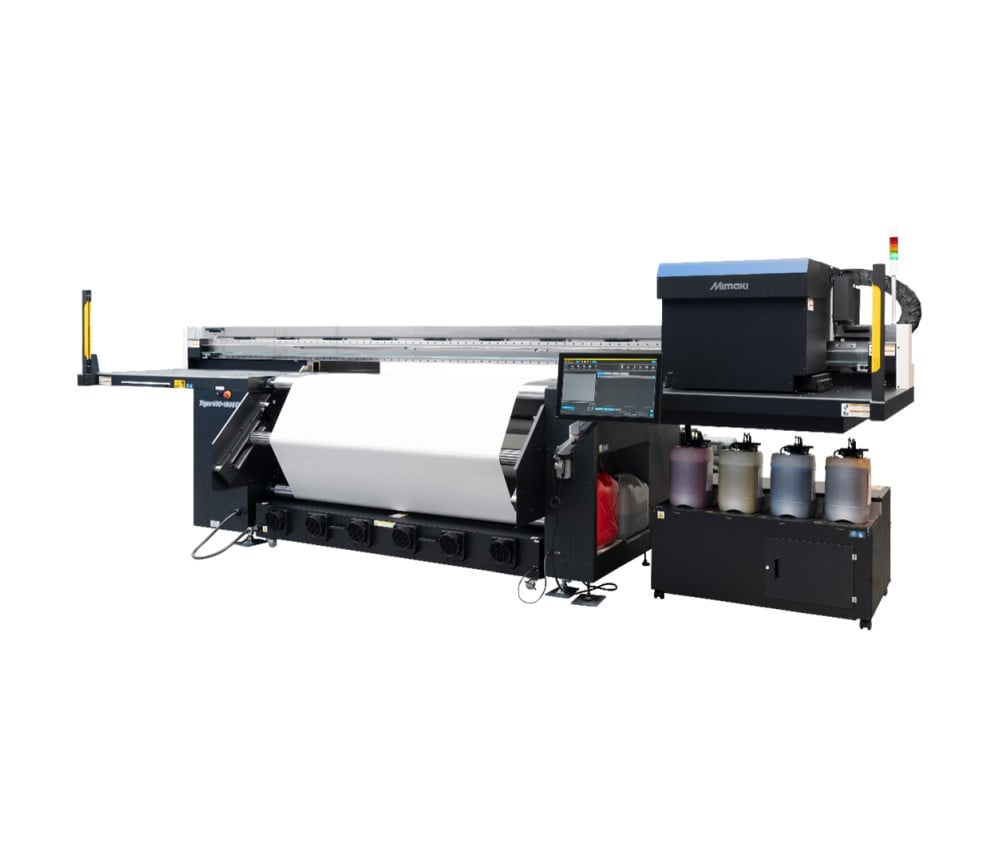

The Tiger600-1800TS is a high-speed sublimation printer that revolutionizes efficiency and sustainability. New design and advanced technology achieve print speeds up to 5,920 ft2 per hour (550 m2/hr). To handle large projects with ease, increasing speed to market without compromising quality. Ideal for environmentally conscious businesses, its waterless printing technology and OEKO-TEX® and bluesign®* approved inks set new eco-friendly standards to minimize environmental impact. And with its user-friendly operation interface, the Tiger suits all skill levels for a smooth printing experience. From fashion, sportswear, home decor, to soft signage, this versatile printer brings every vision to life. Embrace Japanese technology, redefine your capabilities, and make a sustainable impact with Mimaki’s Tiger600-1800TS.
| Dye Sublimation Ink (MLSb510) | BLUE: MLS51-BLT-BJ |
|---|
