| Printhead: | On-demand piezo head (2 staggered printheads) |
| Print resolution | 600dpi, 800 dpi, 900dpi, 1200dpi |
| Print speed (4 color mode) | up to 1076.4 SqFt/Hr (100.00 m2/h) |
| Maximum Print Area: | 53.5″ (1360 mm) | 63.4″ (1610 mm) |
| Maximum media width: | 53.9″ (1370 mm) | 63.8″ (1620 mm) |
| Maximum media thickness | up to 0.04″ (1.0 mm) |
| Maximum Media weight: | One roll：Max. 45 kg (99.2 lb) or less Three rolls：Total 90 kg (198.4 lb) or less |
| Ink Type/Color: | Eco-solvent ink SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W) BS4 (C, M, Y, K) |
| Interface: | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed |
| Power supply: | Main unit：(Single phase AC100-120/200-240V±10％, 50/60Hz±1Hz) ×2 |
| Power consumption: | Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode) |
| Operational environment: | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
| Dimensions (W × D × H): | 2,920 × 1,215 × 1,305 mm (115.0 x 47.8 x 51.4″) | 3,170 × 1,215 × 1,305 mm (124.8 x 47.8 x 51.4″) |
| Weight: | JV330-130: 789.2 lbs. (358 kg) |
| Certifications: | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold Certificate No. 67174-420 |

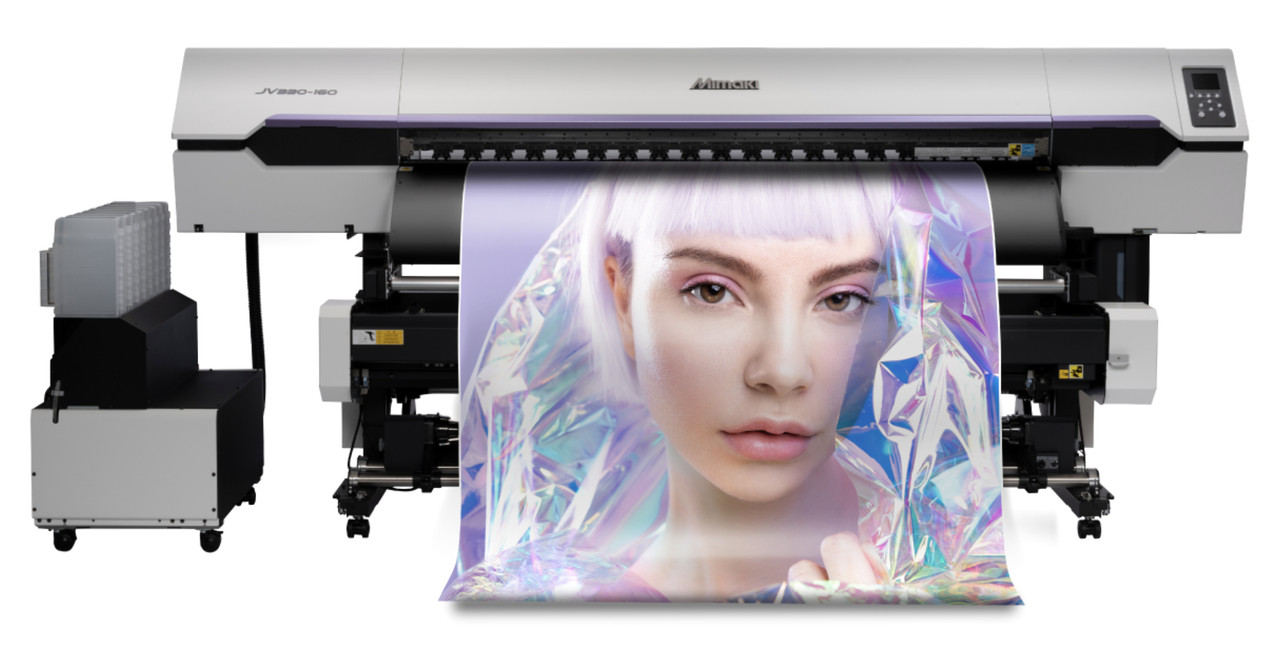

Compatible with Mimaki original Eco-Solvent inks this printer offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, posters, and more for internal and external use.
Get started in under 2 minutes
